1. Product introduction

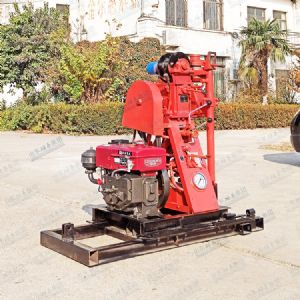

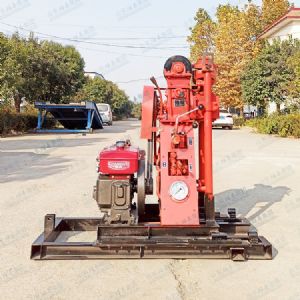

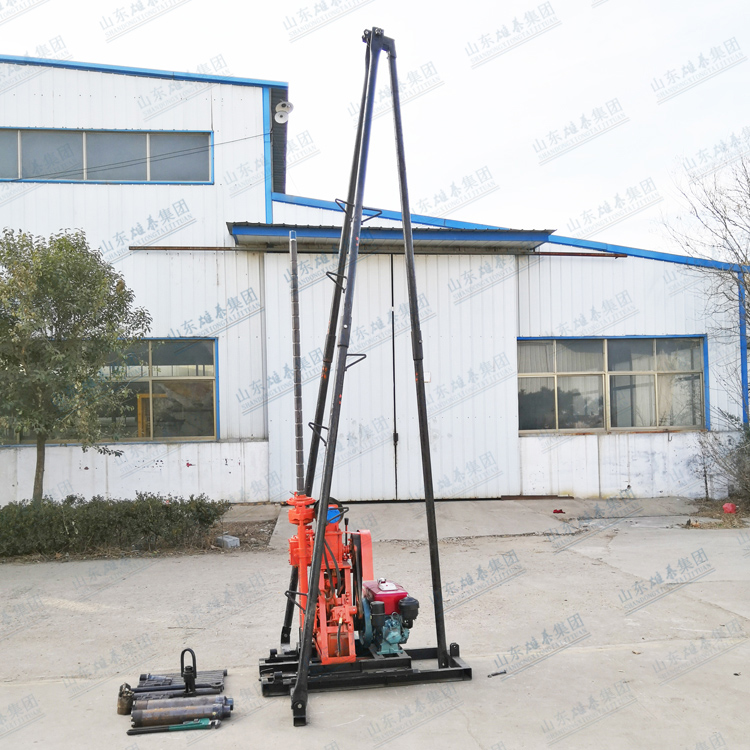

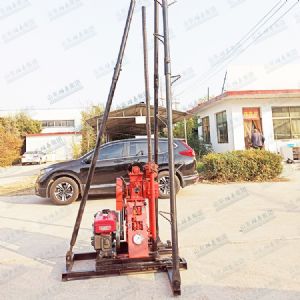

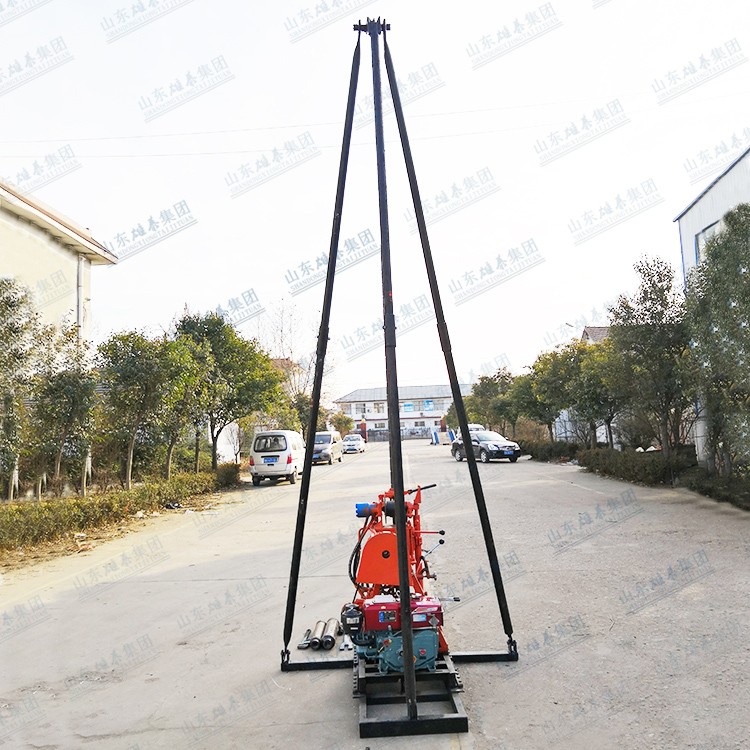

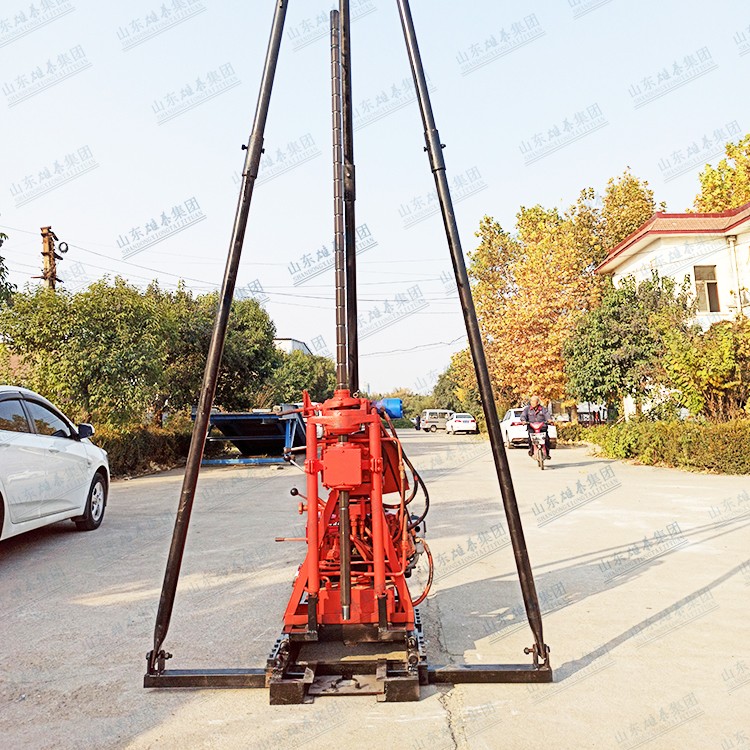

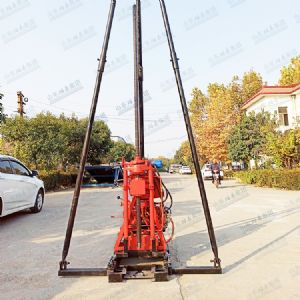

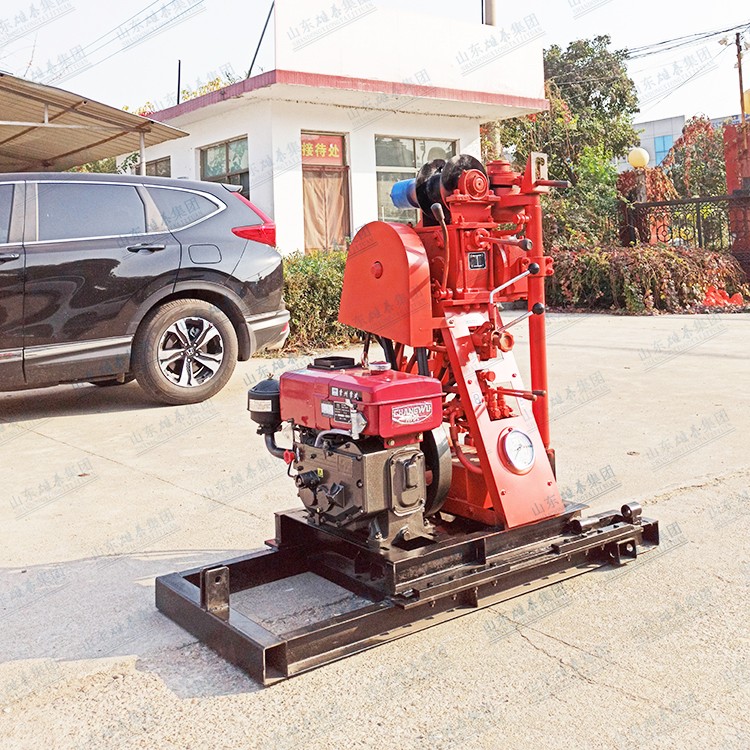

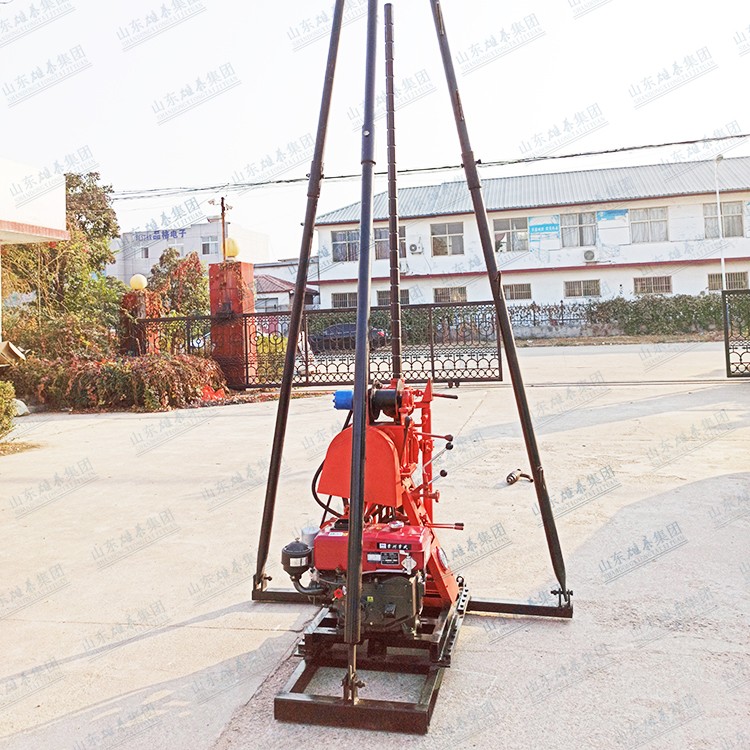

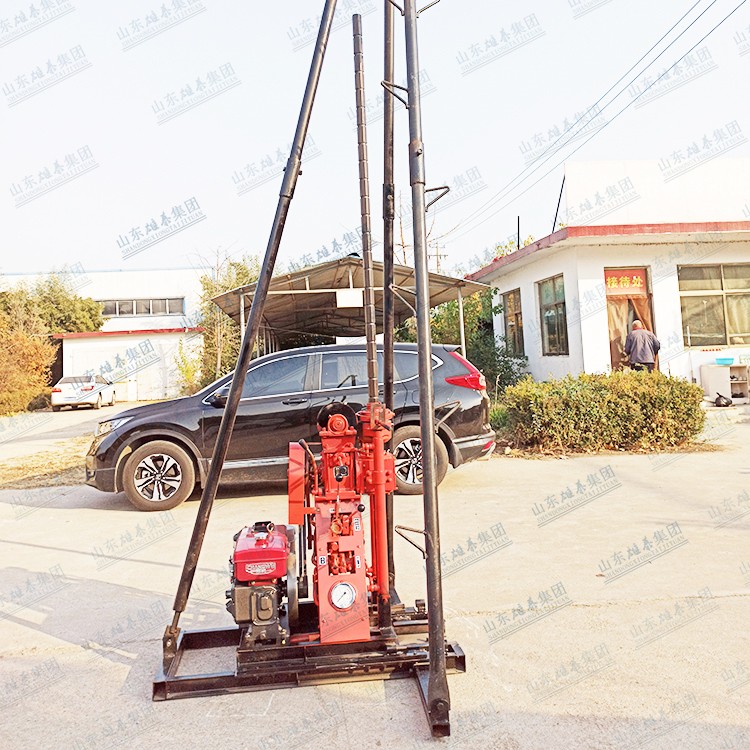

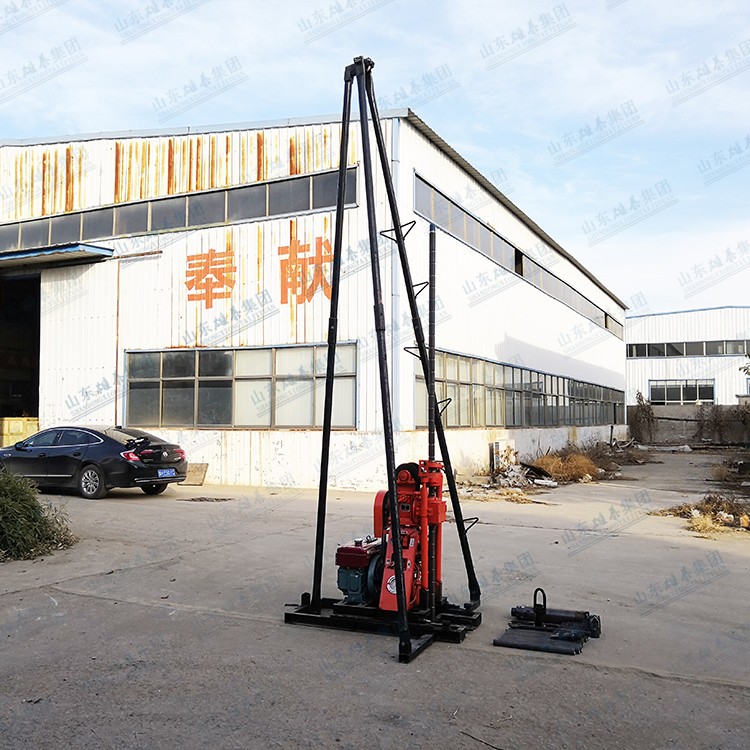

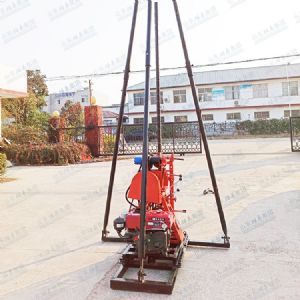

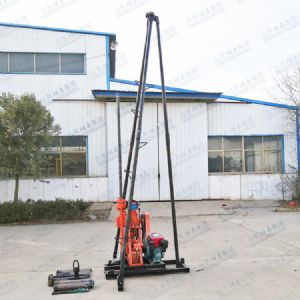

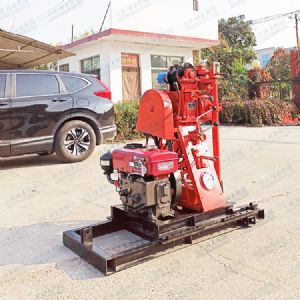

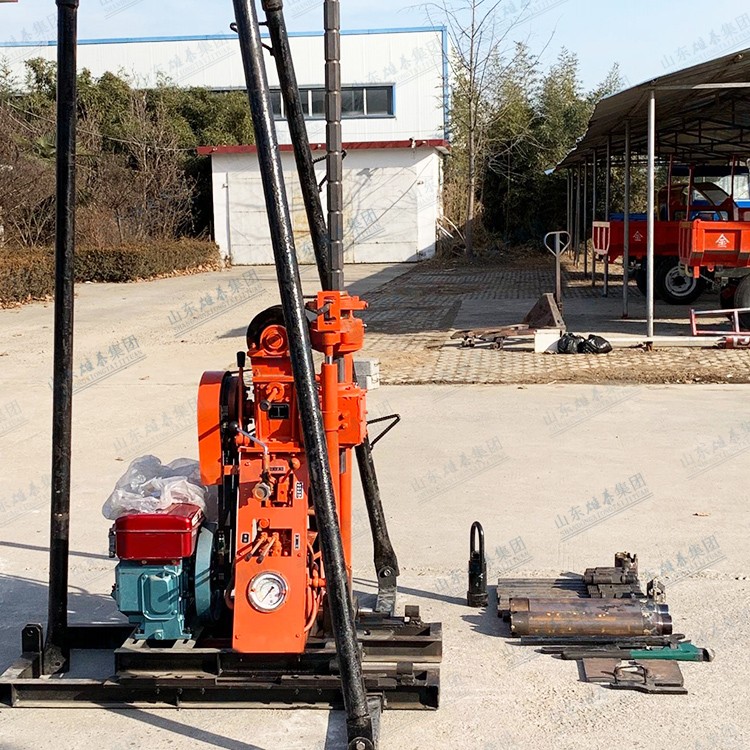

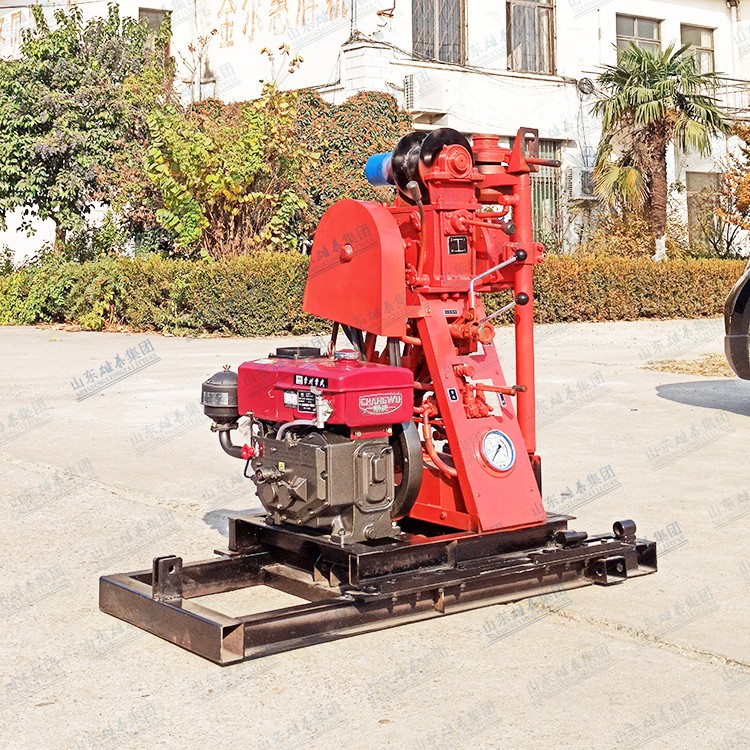

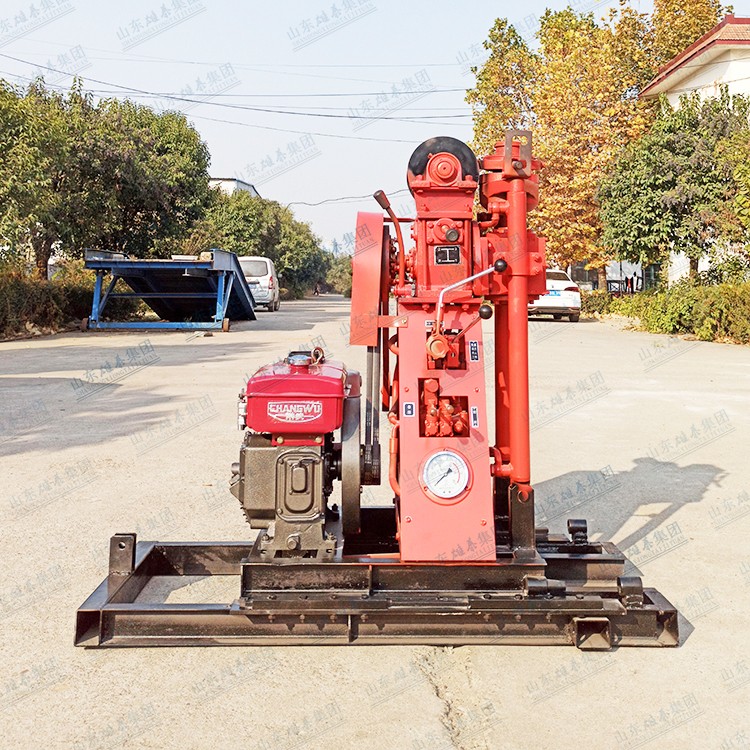

The BZ-50S drilling rig produced by our factory is upgraded on the basis of the 50 series drilling rig, which solves the operation mode of traditional small hydraulic drilling rigs that have short drill rods and need to repeatedly lift and lower the drill when drilling. This model adds Machine moving function, the length of the drill pipe is up to three meters (customized support), and the height of the drill tower is 4.5 meters, which simplifies the operation process and increases the drilling speed.
2. Product features
<1>. With hydraulic automatic feed mechanism, improve drilling efficiency and reduce physical labor of workers.
<2>. The ball clamp clamping mechanism is used instead of the chuck, and the lever can be reversed without stopping, which is easy to operate, safe and reliable.3. The handle is convenient for centralized operation.4. The structure is compact, the base is stable, and the floor space is small.5. Light weight, strong decomposability, easy to move, suitable for working in plains or mountain areas.
3. Machine parameters
| BZ-50SHydraulic rig parameters | |
| Drilling depth | 50m |
| Maximum opening diameter | 108mm |
| Final hole diameter | 75mm |
| Active drill pipe | 50*3000mm |
| Drill pipe diameter | 42mm |
| Drilling angle | 90° |
| Power (diesel engine) | 8HP 5.88kw |
| Structure weight | 290kg（含柴油機） |
| size | 104*80*140cm |
| Vertical axis | |
| Vertical shaft speed (third gear) | 142/285/570r/min |
| Vertical axis stroke | 450mm |
| Maximum feed force of vertical shaft | 350kg |
| Maximum lifting capacity of vertical shaft | 250kg |
| Rig | |
| Tower leg specifications (triangular tower) | 60mm |
| height | 4.5m |
| Rated load | 1.3T |
Shandong XIONGTAI Machinery Group Co., Ltd
Consultation hotline：400-0537-369
